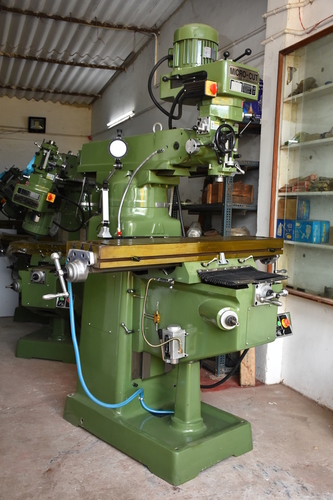

Vertical Turret Microcut Milling Machine

Vertical Turret Microcut Milling Machine
Vertical Turret Microcut Milling Machine
Send Inquiry
Product Code : 07
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit/Units
  • Price
  • 50000 INR
Product Specifications
  • Product Type
  • Microcut Milling Machine
  • Material
  • Stainless Steel
  • Weight (kg)
  • 550 Kilograms (kg)
  • Computerized
  • No
  • Automatic
  • Yes
  • Voltage
  • 220 Volt (v)
  • Color
  • Green
Product Description

Vertical Turret Microcut Milling Machine is designed having a stationary spindle whereas its table moves perpendicularly & parallel to the spindle axis. It is powered by a superior quality motor which is mounted at the top. This machine is highly efficient in nature and can produce different product geometries with great precision. It allows the user to have a clear view of the milling process thus assures easy adjustments whenever required. Vertical Turret Microcut Milling Machine is equipped with chrome hardened & ground quill for an excellent performance.

Features:

  • Highly durable in nature
  • User-friendly operation
  • Completely trustworthy

Technical specification

Auto Quill Feeds

0.4/0.08/0.15mm(per reduction)

Weight

1350 kg

Table Size

127 x 254 x 82 mm

Spindle Tapper

R8 ISO-30mm

Spindle Motor

3 HP

Quick Travel

127mm

Model

4E

Maximum Distance Between

405mm

Longitudinal Travel X Manual

890 mm

Head Tilt

90(RXL)45(FXB)

Dimension

1500 x 1700 x 2100mm

Cross Travel Y

395 mm



WE MAINLY DEAL IN TAMIL NADU & CHENNAI



Trade Information
  • Supply Ability
  • 1 Per Month
  • Delivery Time
  • 1 Week
  • Main Domestic Market
  • Tamil Nadu
