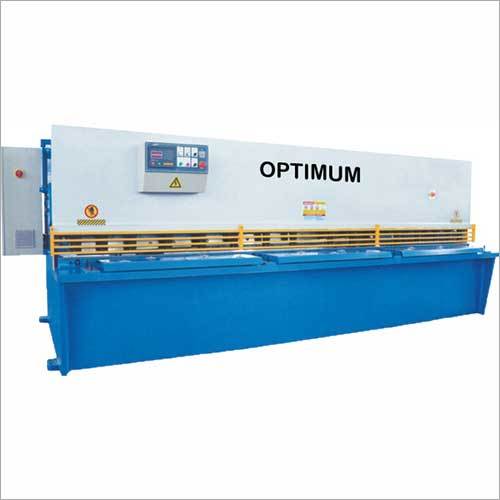

NC Hydraulic Swing Beam Shear

NC Hydraulic Swing Beam Shear
NC Hydraulic Swing Beam Shear
Send Inquiry
Product Code : 33
Product Description

Technical specification

Back gauge Travel Distance

20-800mm

Brand

Optimum

Worktable Height

820 mm

Throat Depth

100 mm

The Distance Between Two Side Plates

3470 mm

Stroke Times

7 mm

Max Shearing Thickness

16 mm

Max Shearing Length

3200 mm

Material Strength

450 N/ mm2

Main Motor Power

18.5 kW

Dimension

3870*2150*2000 mm

Blade Length

3300 mm
