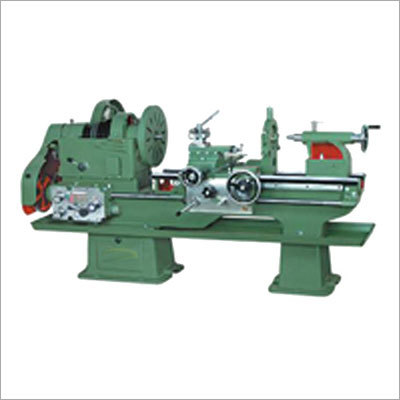

Medium Lathe Machine

Medium Lathe Machine

125000 INR/Piece

Product Details:

X

Price And Quantity

  • 125000 INR/Piece
  • 1 Piece

Trade Information

  • 1 Piece Per Month
  • 10 Days
  • Tamil Nadu

Product Description

Product description

Bed Type

2 V & 2 Flat

Height of Centre

215 mm

Spindle Bore

52 mm

Travel of Compound Slide

150 mm

Tool Shank Section

25 x 25 mm

Taper Bore in Spindle Sleeve

MT-4

Swing of Gap

620 mm

Swing Over Cross Slide

260 mm

Swing Over Bed

425 mm

Size of Threaded Spindle Nose

6 T.P.I. 75 mm

Range

40 - 550 RPM

Ram Travel

150 mm

Ram Diameter

50.8 mm

No of Speeds

6

Movement of Cross Slide

250 mm

Metric

19/0.50 to 8.0 mm

Length of Gap in Front of Face Plate

125 mm

Length of Gap in Bed

110 mm

Lead Screw Diameter and Pitch

31.75 mm. x 4 TPI

Bed Width

279 mm

Specification :

MODEL

ADMIT BETWEEN
CENTER

WEIGHT
(APPROX)

FLOOR SPACE
(APPROX)

M-1 1370 mm.

450 mm.

575 kg.

1650 x 970 mm.

M-2 1600 mm.

725 mm.

650 kg.

1950 x 970 mm.

M-3 1830 mm.

990 mm.

675 kg.

2100 x 970 mm.


WE MAINLY DEAL IN TAMIL NADU & CHENNAI




PREMIER MACHINE TOOLS
