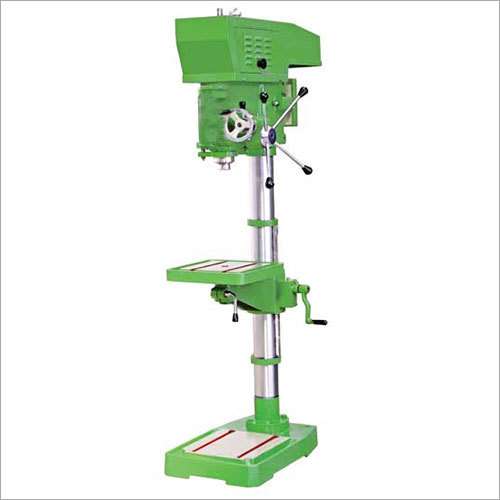

25-50 LD Drilling Machine

25-50 LD Drilling Machine
25-50 LD Drilling Machine
Send Inquiry
Product Code : 12
Product Description

Technical specification

Base Plate

370 x 550

Weight

185kg

V BELT

B-49

Tapping Capacity

15

Taper Spindle

M.T.-3

Table Diameter

310 x 310 mm

Speed

150 to 2651 min./max

Quil Movement

155

No of T Slots

2

No Range of Spindle

8

No Range of Feed

Manual

Maximum Distance from Spindle to work table

680mm

Maximum Distance from Spindle to base Plate

1050mm

Drilling Motor

1 HP

Drilling

25 [C.I.],25[M.S.]

Distance from Spindle Center to Cloumn Face

230

Column Diameter

92mm
